Accessories for Digalox measuring devices, e. g. the USB-XBEE stick, seals, adapters, etc.
USB-adapter for conveniently connecting a PC to the XBEE network for configuration or recording of measured data
- Contains an XBEE3 radio module with an integrated antenna
- For the connection of a PC to the XBEE mesh network
- Needed for the configuration of the DPM72 XBEE models as well as the XBEE measuring units
- Enables wireless recording ot data
Use with Digalox® Manager
The XBEE USB thumb drive enables the convenient configuration of the DPM72 measuring devices via the free software "Digalox® Manager".
Ad-Hoc-Datalogging
Via the free software "Digalox® XBEE Poll" datalogging tasks can be implemented at times, such as on site using a laptop PC.
Administration and troubleshooting of the XBEE network
Using the USB thumb drive, the function, range, and signal quality of the XBEE-network can be examined as well as optimised.
Specification DPM72-XBEE-STICK
| Supply | 5V DC ± 10 % |
| Power consumption | max. 0,2 W |
| Operation temperature | 0 °C to +50 °C |
| Storage temperature | -20 °C to +70 °C |
| Product in the TDE shop | DPM72-XBEE-STICK in the TDE Shop |
--------------------------------------------------------------------------------------------------------------------------------------------------

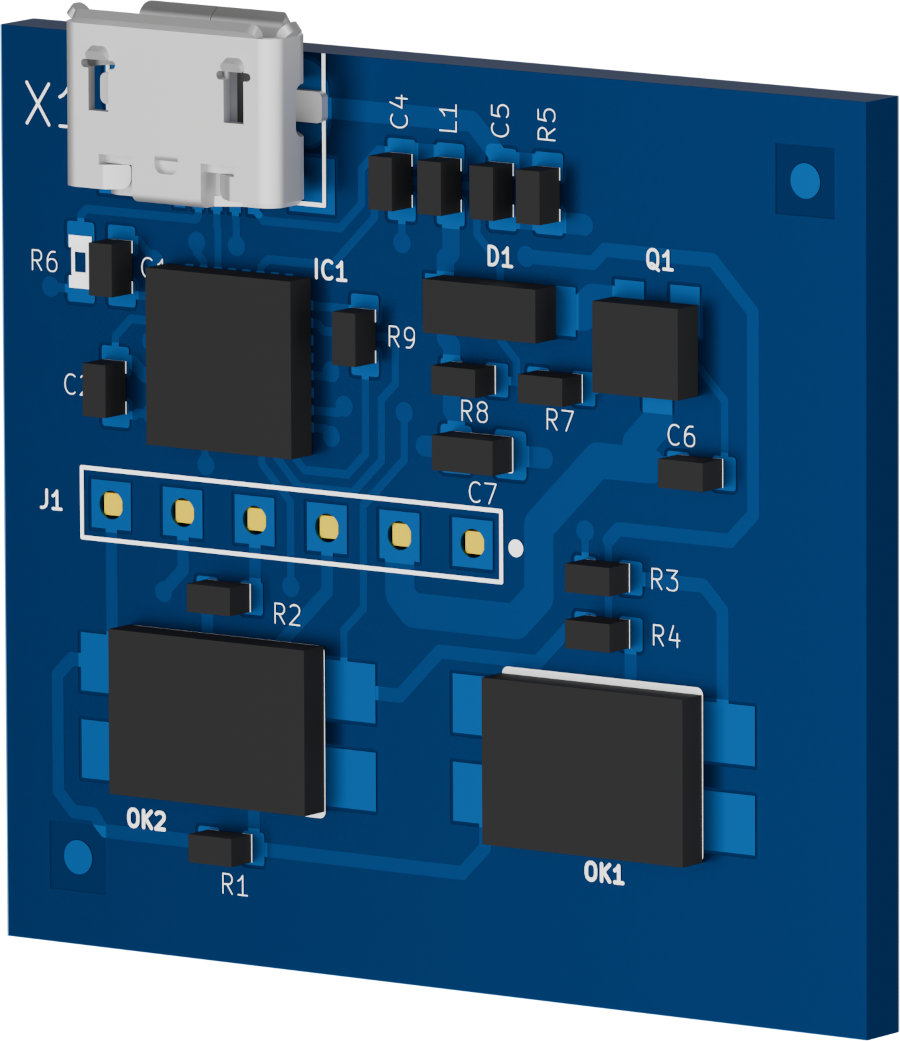

USB interface card for DPM72-AV2 and DPM36
The Digalox® EX-USB interface card allows the DPM72-AV2 and DPM36 to be equipped with a USB port, enabling them to be connected to a PC.
This facilitates the convenient configuration of the measuring instruments using the free "Digalox® Manager" software.
Product in the TDE Shop
--------------------------------------------------------------------------------------------------------------------------------------------------

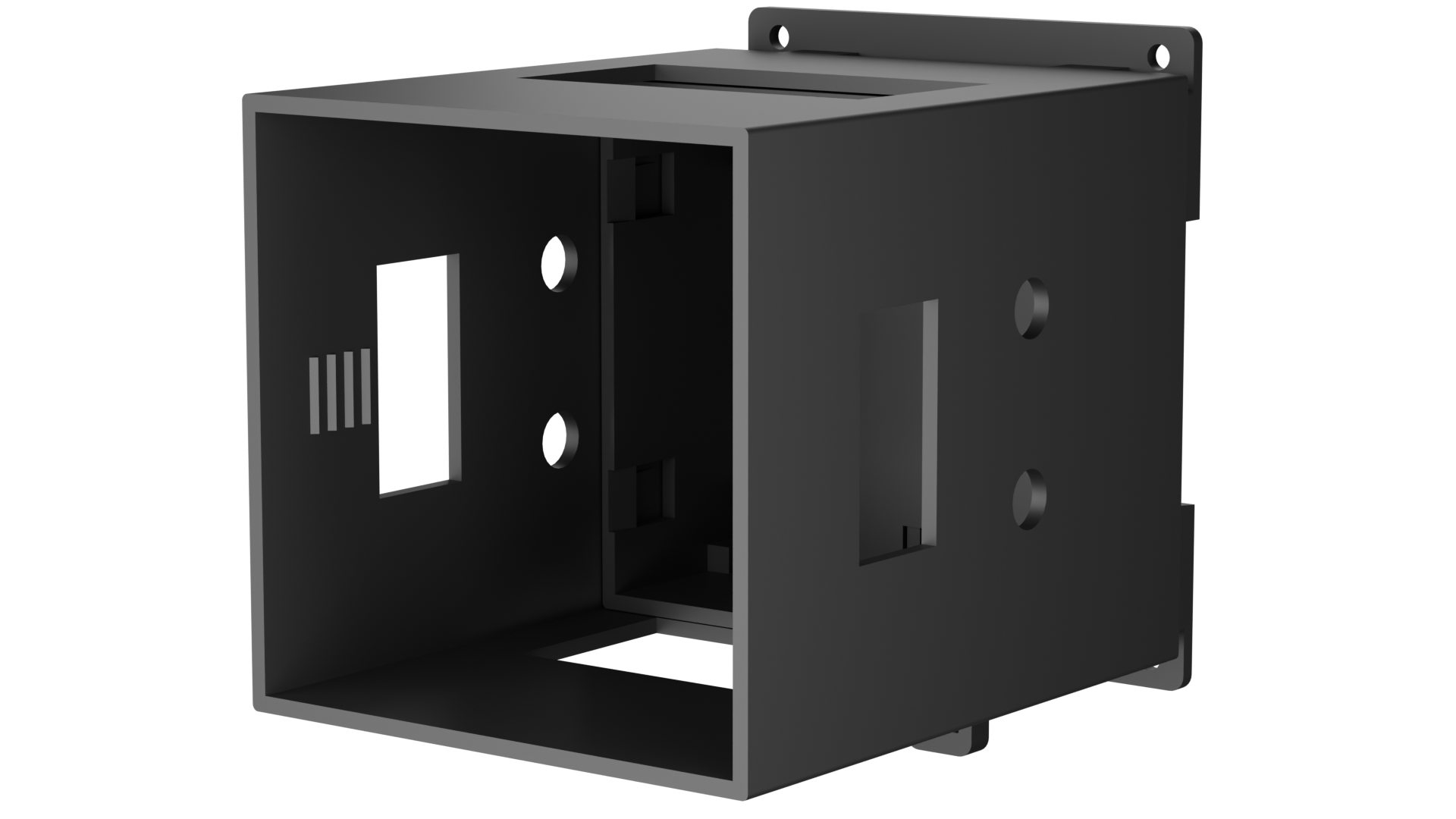

Adapter frame for mounting DPM72 measuring instruments with display on DIN rails
This black plastic adapter frame allows you to mount Digalox® measuring devices with displays on a DIN rail.
The adapter also features boreholes in the housing, allowing it to be mounted on other surfaces.
Available on request.
--------------------------------------------------------------------------------------------------------------------------------------------------
Seal for DPM72 measuring instruments
Seal shape: Square EPDM/SBR
Inner dimension: 66.00 mm
Outer dimension: 68.00 mm
Thickness: 2.00 mm
Enables IP65 protection class
Product in the TDE Shop
--------------------------------------------------------------------------------------------------------------------------------------------------
TEALOG 6 & Tealog 6 Plus - externe Tastatur zur DPM72 Bedienung
Thalheimer Transformatorenwerke GmbH has developed an external keypad that allows users to operate permanently installed DPM72 measuring devices at the touch of a button (even while wearing gloves).
Features include direct selection of 6 measurement and 6 logging modes, easy mounting in a standard DPM72 panel cutout, quick parameter selection, a logging button, and much more.
Product information is available on the Thalheimer website.
--------------------------------------------------------------------------------------------------------------------------------------------------
